NEO+ – EN 54-16 Public Address and Voice Alarm System
£6,635.97
Product Overview
LDA NEO+ is a compact EN 54-16 certified PA/VA system that ensures a fast, safe, and controlled emergency evacuation.
Main controller of the LDA NEO+ system, certified according to the EN 54-16 standard.

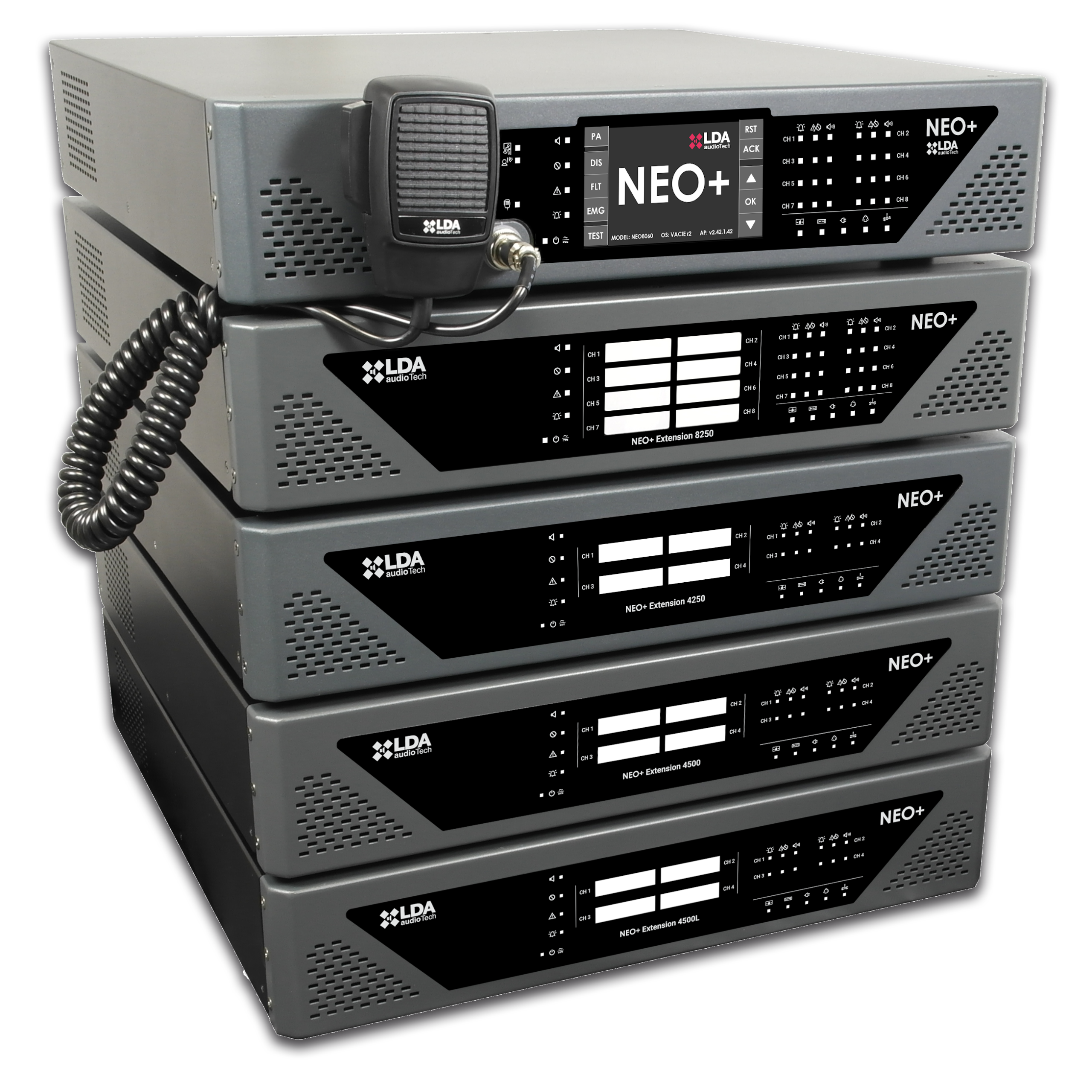

Includes a triple IP port for the transmission of AES67 protocol layer 3 digital audio, remote control /supervision, redundant cascading connection of NEO+ Extensions units, or operation in multi -site environments with multiple NEO+ systems.
Allows standalone operation or redundancy with a second NEO8060+ unit in a hot backup configuration.
5 analogue audio inputs and integrated amplification in 100V/70V lines: 8 Class D amplifiers of 120W per channel.
Dual A+B amplification outputs.
8 pre-amplification outputs for connection to external amplifiers.
22 GPIO ports (8 supervised forintegration with fire panels).

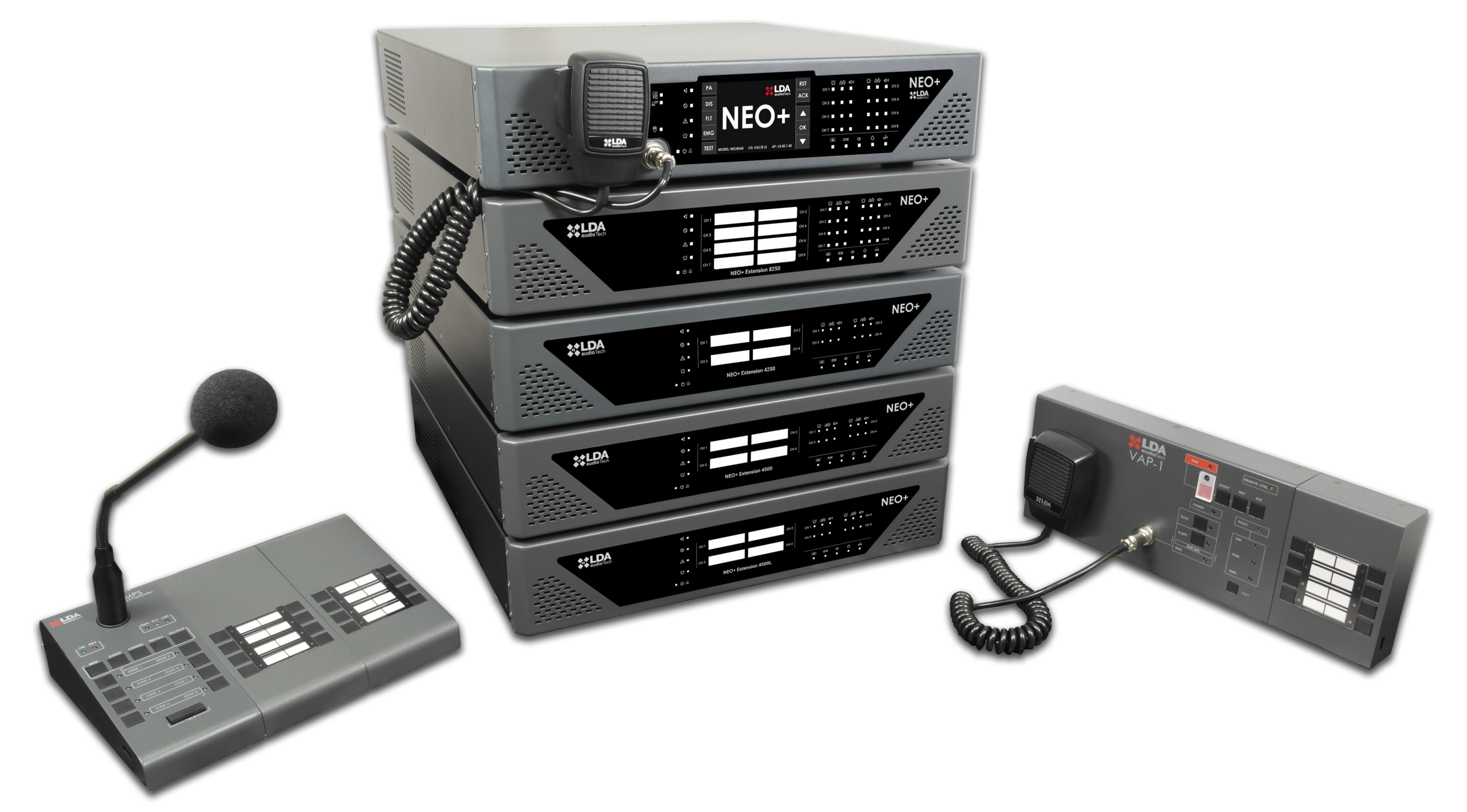

Supports up to 8 devices on ACSI v1 or 32 devices on ACSI v2 bus directly connected, MPS-8Z microphones, or VAP emergency
panels; and up to 64 devices on ACSI bus using the LDA NEXO converter through IP networks.

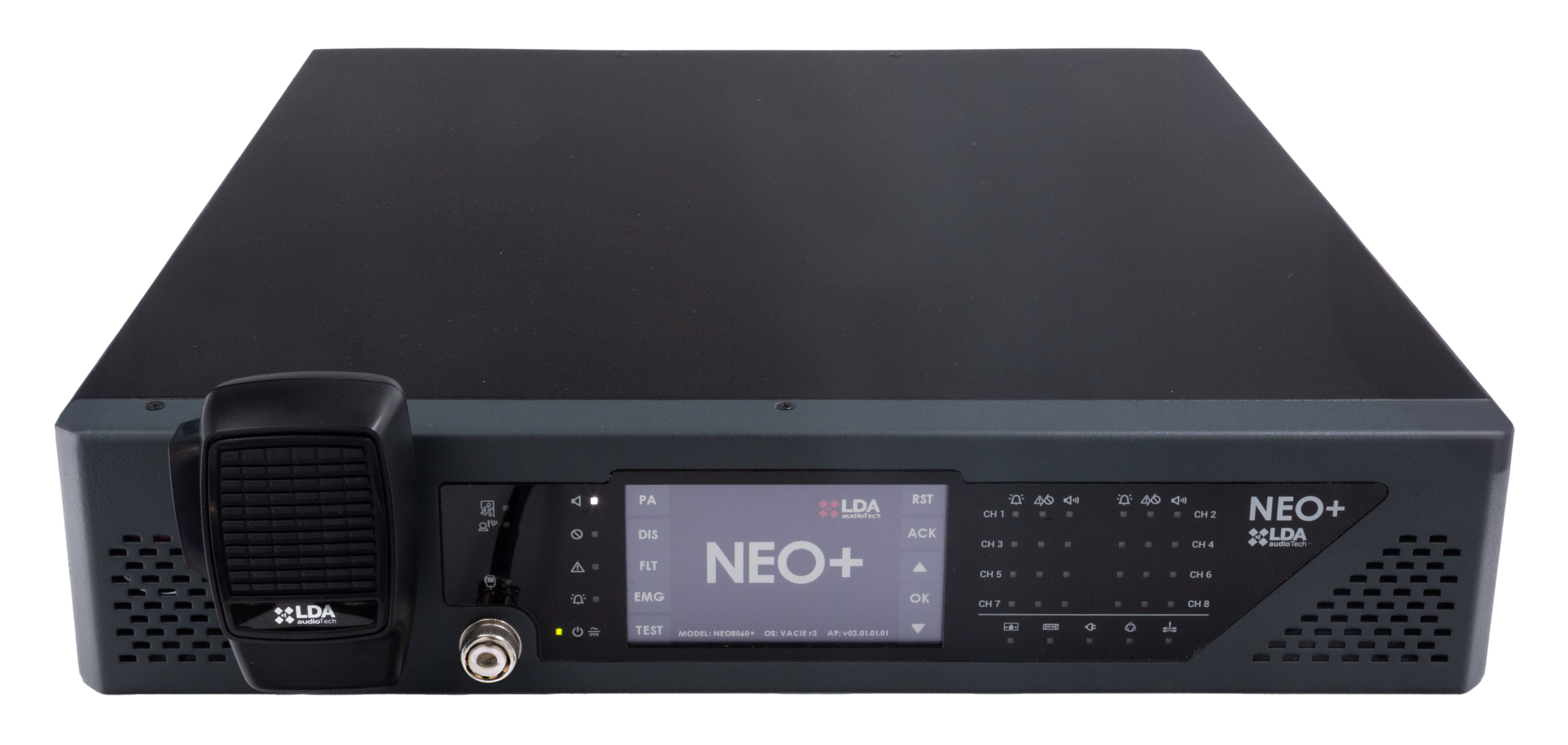

4.3” touch screen.
Embedded PTT microphone.
Internal memory for up to 100 pre-recorded messages.
NEO Configurator software for configuration and event programming included.
