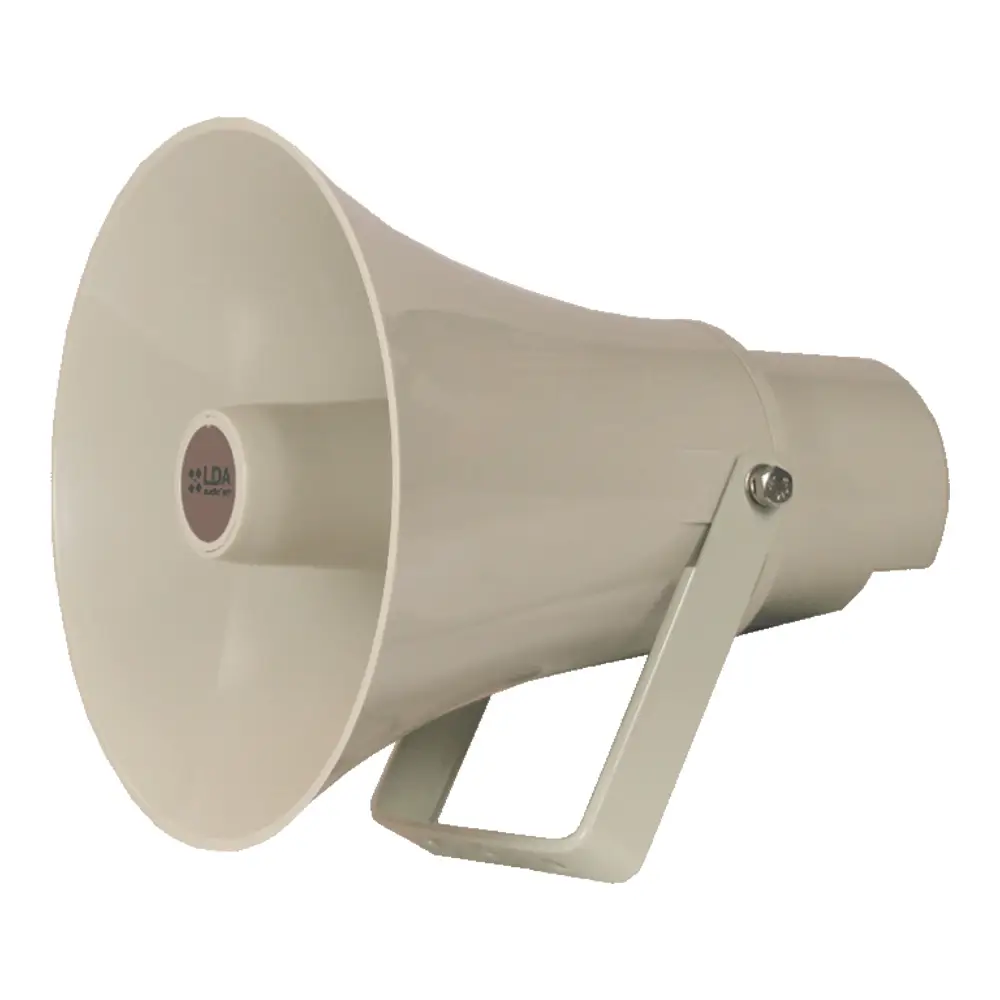

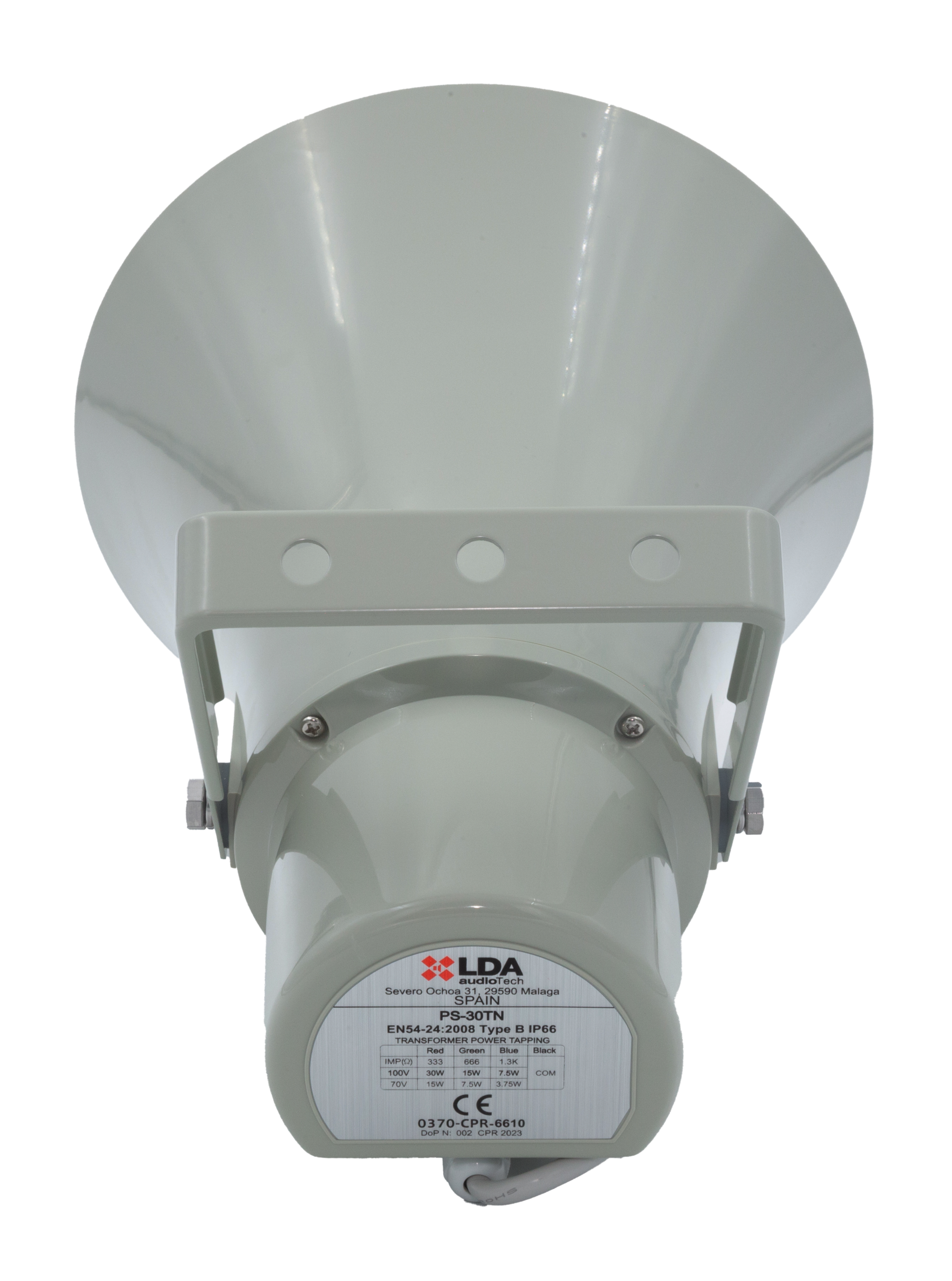

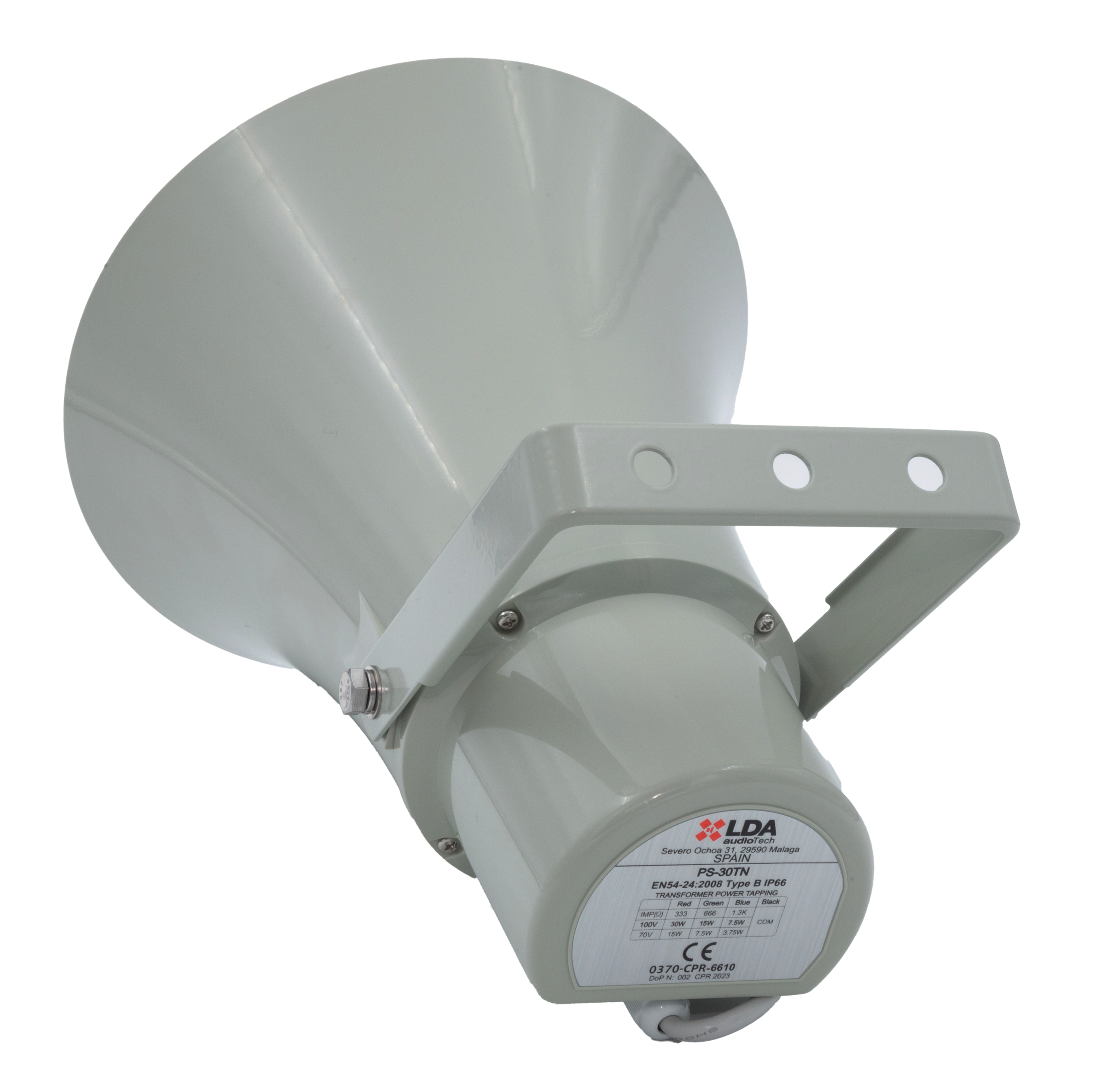

PS-30TN – IP66 Horn Loudspeaker

EN 54-24 certified PS-30TN IP66 horn loudspeaker.

• MINIMUM ORDER: 4 Units.
• Maximum power 45 W.
• Nominal power 30 W. 30 W / 15 W / 7.5 W @ 100V. 15 W / 7.5 W / 3.75 W @ 70V.
• SPL a 15W / 1W (100Hz-10KHz, 1m) 117dB / 105dB SPL a 15W / 1W (100Hz-10KHz, 4m) 105 dB / 93 dB.
• Frequency range (-10 dB) 300 Hz -16 kHz.
• Rated input 100 V / 70 V impedance of 667 Ω / 1K Ω / 2K Ω.
• Colour (RAL 7035).
• ABS material.
• IP 66 protection class and Type B according to EN54-24.

Datasheet
